Descrizione
Module Type
Max. Power Output Pmax (W)
Max. Power Voltage Vmp (V)
Max. Power Current Imp (A)
Open Circuit Voltage Voc (V)
Short Circuit Current Isc (A)
Module Efficiency (%)

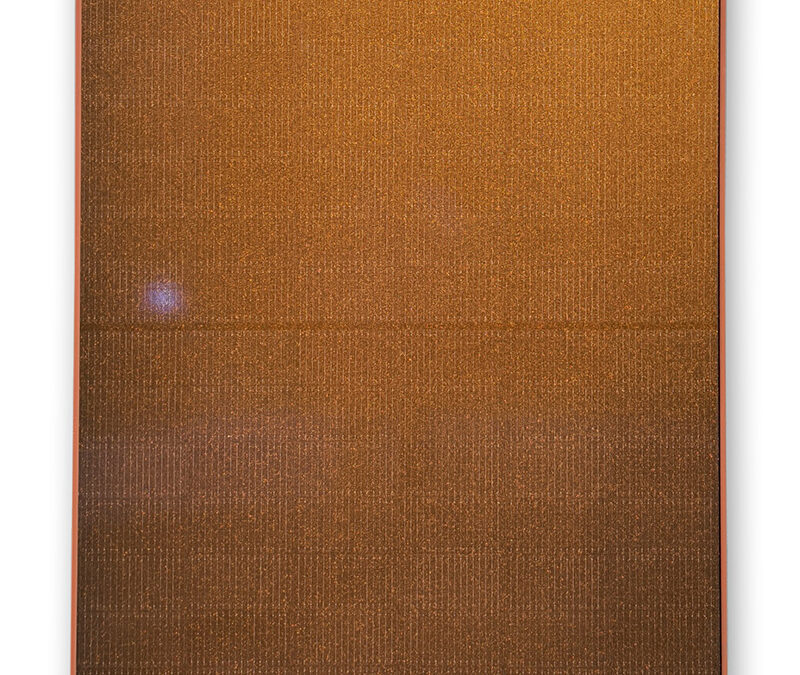

TSHNM380-108HV
380
32.68
11.63
38.51
12.49
19.46%
Electrical Parameters @STC
Mono 182x91mm
108pcs 2*(6×9)
1722×1134×30mm
21.0kg
3.2mm Tempered Glass
Black Back Sheet
Anodized Aluminium Alloy
IP68, 3 Bypass Diodes
400mm (+) /300mm (-)
PV Connector
Cell Type
Cell Arrangement
Dimension (L×W×H)
Weight
Front Cover
Back Cover
Frame
Junction Box
Length of Cable
Connector
Mechanical Parameters Technical Drawings (mm)
Patner's Notes
-0.30%/°C
-0.25%/°C
+0.046 %/°C
45°C±2°C
Temperature Coefficients of Pmp
Temperature Coefficients of Voc
Temperature Coefficients of Isc
NMOT
Temperature Coefficients
Maximum System Voltage(V)
Operating Temperature(°C)
Max. Wind Load / Snow Load(Pa)
Max. Over Current(A)
Operating Parameters
36 pcs
26pallets, 936pcs
Quantity / Pallet
Container 40'HQ
