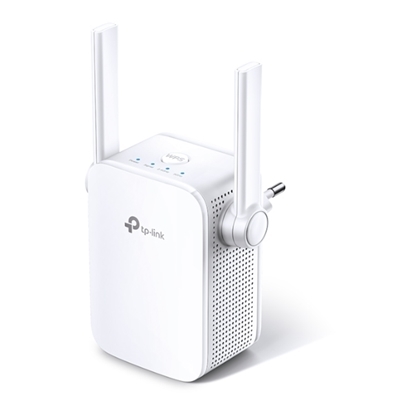

WIRELESS AC1200 RANGE EXTENDER DUAL BAND

Descrizione

Version 4.0

WIRELESS
Working Modes: Range Extender/Access Point

CARATTERISTICHE HARDWARE
Tipo di connettore: EU, UK, US
Standard e protocolli: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interfaccia: 1 * 10/100M Ethernet Port (RJ45)
Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
Tasto: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Consumo energetico: 7.3W（max power consumption）
Dimensioni ( L x P x A ): 3.1*3.0*3.0 in. (80*78*77mm)
Antenna: 2* external

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequenza: 2.4GHz & 5GHz(11ac)
Signal rate:
- 5GHz:Up to 867Mbps
- 2.4GHz:Up to 300Mpbs
Sensibilità di ricezione:
5GHz:
- 11a 6Mbps:-91dBm @10% PER
- 11a 54Mbps: -74dBm @10% PER
- 11ac HT20 mcs8: -68dBm @10% PER
- 11ac HT40 mcs9: -63dBm @10% PER
- 11ac HT80 mcs9: -59dBm @10% PER
2.4GHz:
- 11g 54M: -79dBm @10% PER
- 11n HT20 mcs7: -77dBm @10% PER
- 11n HT40 mcs7: -74dBm @10% PER
Modalità wireless:
- Range Extender/Access Point
- Wireless Statistic
- Concurrent Mode boost both 2.4G/5G Wi-Fi band
Funzionalità wireless:
- Wireless Statistic
- Concurrent Mode boost both 2.4G/5G Wi-Fi band
- Access Control
- LED Control
- Domain Login Function
Sicurezza wireless:
- 64/128-bit WEP
- WPA-PSK / WPA2-PSK
Potenza di trasmissione:
- <17dBm(2.4GHz)
- <17dBm(5GHz)

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
- AC1200 Wi-Fi Range Extender RE305
- Quick Installation Guide
Dimensioni scatola ( L x P x A ): 6.15*4*3.7in. (156.5*101.5*95mm)
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Ambiente:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
