PC PC M ULTRA5-225T 16DDR5 512SSD W11P

Performance
Processor: Intel Core Ultra 5 225T, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
AI PC Category: AI PC
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: Integrated Intel Graphics
Chipset: Intel Q870 Chipset
Memory: 1x 16GB SODIMM DDR5-5600
Memory Slots: Two DDR5 SODIMM slots, dual-channel capable
Max Memory: Up to 64GB (2x 32GB DDR5 SODIMM)
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
Max Storage Support:
- Up to two drives, 2x M.2 2280 SSD
- M.2 2280 SSD up to 2TB
RAID Preset: None
Card Reader: No card reader
Optical: None
Audio Chip:
- High Definition (HD) Audio, Realtek ALC233VB or Conexant CX11771 codec
- 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 24-bit PCM format
- 16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format
Speakers: 2Wx1
Power Supply: 135W 90% Adapter

Design
Keyboard: USB Traditional Keyboard, Black, Italian
Mouse: USB Calliope Mouse, Black
Expansion Slots: Three M.2 slots (one for WLAN, two for SSD)
Case Color: Black
Stand: None
Adapter Cage: None
Toolless Chassis Screw: Toolless Chassis Screw
Dust Filter: None
Mounting: VESA Mount
IO Box: None
Pen: Pen Not Supported
Form Factor: Tiny (1L)
Dimensions (WxDxH): 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight: Around 1.18 kg (2.6 lbs)

Connectivity
WLAN + Bluetooth: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
WWAN: WWAN Not Supported
Ethernet: Integrated 100/1000M

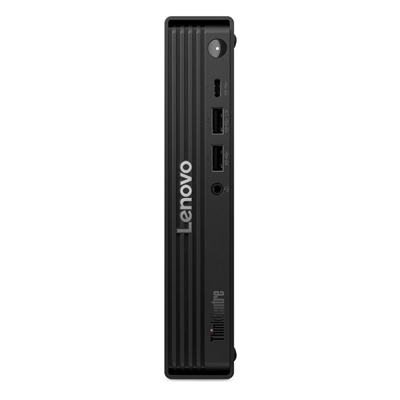

Front Ports:
- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
- 1x headphone / microphone combo jack (3.5mm)

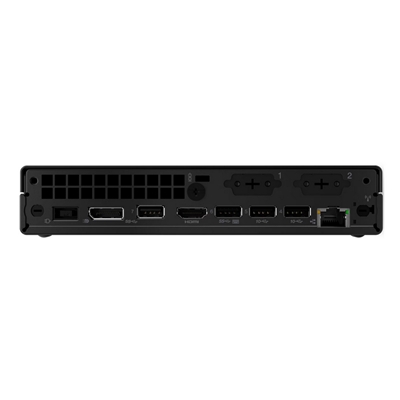

Rear Ports:
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) (models with Intel Q870 Chipset)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI 2.1 TMDS
- 1x DisplayPort 1.4a (HBR2)
- 1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured): None

Security & privacy
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader: No fingerprint reader
Physical Locks: Kensington Security Slot, 3 x 7 mm
Kensington Cable Lock: None
Chassis Intrusion Switch: Chassis Intrusion Switch

Manageability
System Management:
Non-vPro

Service
Base Warranty: 3-year, Onsite
Included Upgrade: None

Certifications
Green Certifications:
- ENERGY STAR 9.0
- RoHS compliant
- TCO Certified, generation 10
Other Certifications: TÜV Rheinland Ultra Low Noise
Mil-Spec Test: MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Software
Operating System: Windows 11 Pro, WE (EN/FR/DE/NL/IT)
Bundled Software: None

Accessories
Bundled Accessories: None

Model information
Model: 13A5000RIX
Machine Type: 13A5
Region: WE
Country/Region: Italy
TopSeller: Yes
EAN / UPC / JAN: 0199271939017
Announce Date: 2025-06-23
End of Support: 2031-12-13
